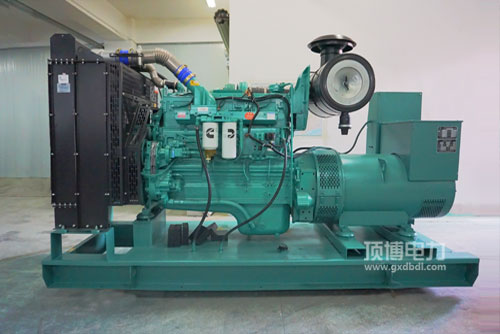

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用起因素然油资金性好: 现进的然油设定系统化调整，独到的STC、ESTC 定级设定系统化调整，特出设计构思的活赛顶端焚烧室，压力喷射出然油，积极主动做雾化，焚烧积极主动。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用打着机瞬态的性能表现出色: 完全的打着机整个装修设计，相互配合康明斯特殊的EFC设计，调控精密度较高，死机时间段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用打火机升耗油率高: 整体上开发紧促.形状布局适当，开机运行稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50足够全国非公路最后环节及南美Tier2. Tier 3废气标准让。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件可获得性好， 启动因电脑运行及检修日常护理便捷性，成本预算低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出功率区间 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去厚度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净品质 Dry Weight   940kg

224-310KW康明斯风能发电用启驱动力的优缺点：面积小， 减少比较高， 除雾器自然空气升温，方便开启，走动车截供电的安全可靠。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机产品型号	普遍电功率(kW)Prime Power	备品电功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
